Home > Automatic System > Traffic lights > Monaco led traffic lights

MONACO LED TRAFFIC LIGHTS

Traffic lights with 2 or 3 colors LED operation, ideal traffic lights for car parks, hotels, warehouses, communities, factories, access controls, supermarkets, car washes,...

The LED traffic light allows energy consumption to be reduced compared to traditional traffic lights with incandescent lamps, thanks to the use of LED lamps that allow savings on operating and maintenance costs. LED traffic lights produce an intense and bright monochromatic light.

Traffic light built with a black plastic body inside which there are 2 or 3 lamp holders (depending on the model) divided by a separator. The traffic light has 2 brackets that give the possibility of fixing the traffic light and turning it approximately 180º.

LED traffic light installed

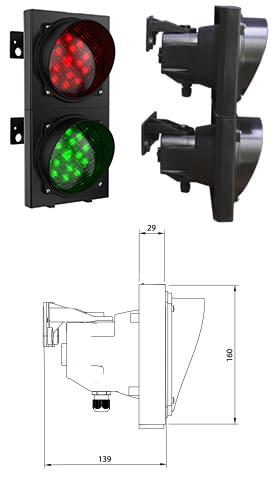

Traffic light Monaco 2 colors (SFLE2)

leds traffic lights monaco

Ref. SFLE2

Technical features:

  • Power supply: 18-36 V dc - 12-24V V ac.
  • Hourly usage (for each card): 1,5 W.
  • Weight: 1,2 kg.
  • Color: Red-Green.
  • IP65.
  • Lens size: ø 124 mm.
  • Dimensions:
    - 160 mm. width.
    - 135 mm bottom (183 including visor).
    - 320 mm. height.
  • Wall fixing by adjustable bracket.
detail traffic light monaco detail union traffic light monaco

Optional:

  • Galvanized post for traffic light with high 2400 mm screw-on plate. - Ref. PSFABRICACION
monaco led traffic lights installed monaco led traffic lights installed

Traffic light Monaco 3 colors (SFLE3)

semaforos de leds

Ref. SFLE3

Technical features:

  • Power supply: 18-36 V dc - 12-24V V ac.
  • Hourly usage (for each card): 3 W.
  • Weight: 1,8 kg.
  • Color: red-amber-green.
  • IP65.
  • Lens size: ø 124 mm.
  • Dimensions:
    - 160 mm. width.
    - 135 mm. bottom (183 including visor).
    - 480 mm. height.
  • Wall fixing by adjustable bracket.
detail traffic light monaco detail union traffic light monaco

Optional:

  • Galvanized post for traffic light with high 2400 mm screw-on plate. - Ref. PSFABRICACION

CONTROL PANEL

control box

Ref. CGSF

Control panel for 2-color traffic lights, ideal for car parks, hotels, factories, neighborhood communities and all those places where vehicle access has to be regulated.

Functions:

  • Operation by time: the duration of the green or red light is determined by their respective timers. The use of photocells or other detection systems can regulate traffic lights based on unregulated traffic.
  • Detection operation: the duration of the green and red light is determined by photocells or other detection devices.

PROGRAMABLE LOGISTIC CONTROLLER (PLC) FOR TRAFFIC LIGHT CONTROL

siemens programmable automata

Production of electrical control panels based on programmable logic controllers (PLC) for traffic light control. Custom programming according to customer needs and place to install.

Possibility of managing sensor input (photocells, magnetic loops, push buttons,...) to optimize the flow of vehicles.

traffic light control traffic light control in parking traffic light control in parking traffic light control cabinet

TECHNICAL SERVICE AND SALE OF TRAFFIC LIGHTS

We have a technical department to provide service and advice in the facilities, we are manufacturers of all types of LED traffic lights.
