    Home > Street Furniture > Telescopic bollards > Semi-automatic bollards > Buenos aires semi-automatic bollards

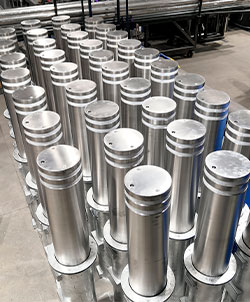

    buenos aires semiautomatic telescopic bollard

    High-end hydraulic semi-automatic retractable bollard designed for manual use, highly resistant to impacts.

    Semi-automatic bollard with tubular structure (shaft) in AISI 304 stainless steel, tubular chassis and cover manufactured from hot-dip galvanised steel.

    Semi-automatic bollards ideal for municipalities, consulates, banks, shopping centres, luxury shops, etc....

    semiautomatic bollards buenos aires
    Reference Diameter Thickness Shaft height
    PEMBU120X500 ø 114 mm. 8,5 mm. 500 mm.
    PEMBU220X500 ø 220 mm. 8,0 mm. 500 mm.
    PEMBU120X750 ø 114 mm. 8,5 mm. 750 mm.
    PEMBU220X750 ø 220 mm. 8,0 mm. 750 mm.


    • Pump system by means of a high-quality gas piston that allows the bollard to rise after unlocking the activation mechanism.

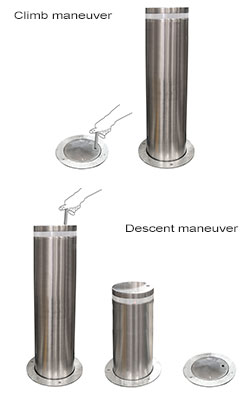

    • Ascent and discent: the bollard has a hole on the shaft cap where the key must be inserted in order to rise and lower. 12 mm locking rod made out of stainless steel. Its composition prevents from any type of wear and corrosion, guaranteeing long durability and perfect operation.

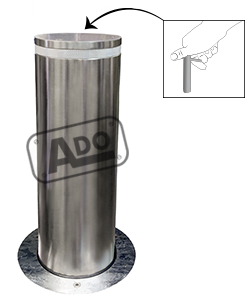

    • Inserting and turning the triangle key unlocks the activation system allowing the bollard to rise and block at its maximal height.
    • Bollard shaft with sliding system using 8 mm thick stainless steel inner skids.
    • Cover made out of 6 mm thick hot-dip AISI 304 stainless steel, not protruding above ground level.
    • Chassis manufactured from electro-welded steel of very high robustness with sliding rails to ensure the perfect alignment and concentricity of the bollard.
    • Small installation depth.
    • Installation by embedment in concrete that results in major impact resistance.
      Installation of a lost casing
    • Minimal preventive maintenance.

    Semi-automatic bollard in line with EC law.

    normativa ce


    • 360º light crown. Different models and colours available.
    • Gradient bollard manufacture according to slope.
    • Vertical milling (6, 8 or 12 millings, depending on bollard diameter).
    • Additional Level 3 reflective bands + horizontal milling.
    • Chassis cover (ground level) in AISI 304 stainless steel (AISI 316 on request).
    • Protective lid for safety lock.
    • Anti-theft safety key (tire type).
    Vertical milling
    Vertical milling
    Extra milling
    Extra milling
    Corten steel
    Weathering steel
    Stainless steel chassis cover
    Stainless steel
    chassis cover
    Car wheel anti-theft type security key
    Car wheel anti-theft
    type security key
    foundation box
    Foundation box


    • Coat of arms, logo or text customization (micro engraving, laser or acid).
    • Special designs and size (according to the customer's needs).
    Emblem, logo or text customization

    Coat of arms, logo or text customization

    Bespoken telescopic bollards

    Custom designs

    More information:

    Related products:


    We have a technical department to provide service and support in the facilities. We are manufacturers and installers of automatic and semi-automatic bollards. Our bollards are shipped with an easy-to-install kit and assembly instructions.

    Automatic bollards, semi-automatic pivots, automatic bollard, semi-automatic, removable bollard, automatic retractable bollards, automatic bollards, semi-automatic bollards, automatic retractable bollards, access control, license plate reading, remote controls, automatic bollard installers, retractable bollards, removable bollards, retractable bollards, telescopic bollards, maintenance, automatic pivots, automatic bollards, streets, parks, town halls, public areas, pneumatics, prices, budget, automata, PLC, Siemens, control center, magnetic loop, presence detector, automatic retractable bollards, automatic bollards, automatic pivots, automatic stainless steel bollard, automatic security bollards, automatic anti-moon bollards, automatic retractable anti-theft bollards, semi-automatic bollards, security bollards, automatic iron bollard, semi-automatic bollard.

    Upon request, we can manufacture semi-automatic and automatic bollards according to customer needs, adapting to all types of designs, measurements and thicknesses that the customer needs.

    Consult with our commercial technicians so they can advise you on the semiautomatic bollards that best suit your needs.
