Home > Street furniture > Speed cushions

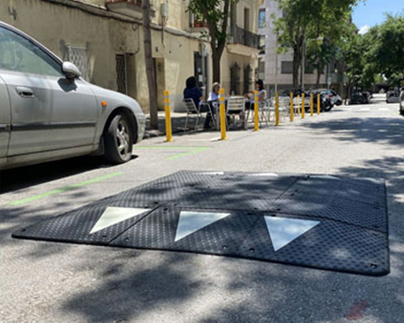

SPEED RUBBER CUSHION

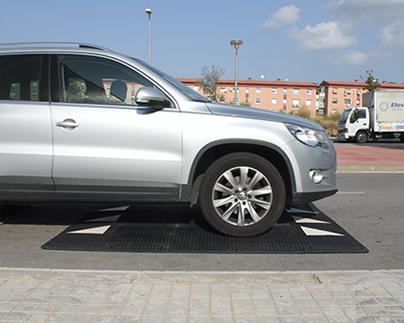

Speed cushions ideal for forcing cars to slow down. The cushion constitutes an obstacle depending on the distance of the wheels from the vehicle axle. This device allows public transport vehicles and trucks to circulate without suffering the lifting effect. Only passenger cars, due to the short distance between wheels on the same axle, are forced to go through the elevated part to reduce speed.

Berlin cushions can be used in streets, parking lots, shopping centers, communities, residential areas, ...

Fixation of the Berlin cushions by means of studs. They incorporate union assemblies, male and female. Easy installation.

The Berlin Cushion can be made in black or red.

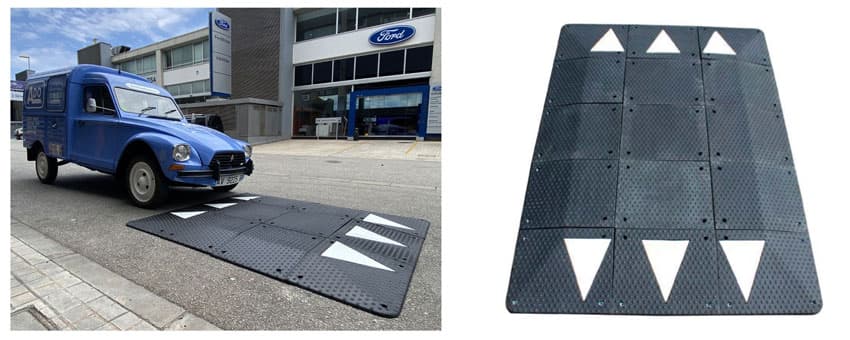

berlinese rubber cushion
berlinese rubber cushion

Detail of the black rubber berlin cushion with vulcanized white triangle.

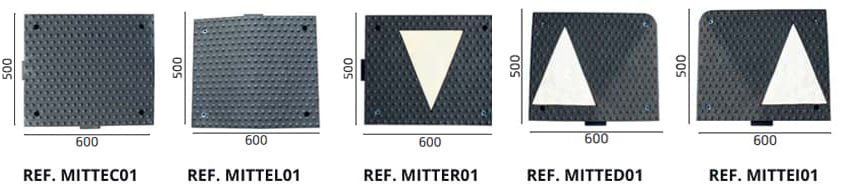

PARTS AND TERMINALS FOR SPEED CUSHION

berlinese rubber cushion black berlinese rubber cushion black

PARTS AND TERMINALS FOR SPEED CUSHION

  • Berlinese cushion 1800 X 1500 X 70 mm.
  • Berlinese cushion 1800 X 2000 X 70 mm.
  • Berlinese cushion 1800 X 2500 X 70 mm.
  • Berlinese cushion 1800 X 3000 X 70 mm.
  • Berlinese cushion 1800 X 3500 X 70 mm.
  • Berlinese cushion 1800 X 4000 X 70 mm.

More information

CONCRETE MONOBLOC SPEED REDUCER

concrete monobloc speed reducer

Berlin cushion / concrete speed reducers built in monobloc parts for quick and easy installation on site with a lifting crane.

Being built in precast concrete, it integrates perfectly with the asphalt of the street.

High visibility reducers (triangles painted in yellow).

Work to be carried out for the installation of the speed reducer:

speed reducer concrete installation

Mark surface


speed reducer concrete installation

Cut surface


speed reducer concrete installation

Chop surface


speed reducer concrete installation

Clean surface


speed reducer concrete installation

Fill surface with concrete


speed reducer concrete installation

Install the one-piece part


Berlin monobloc concrete cushions and models:

monoblock concrete speed reducer large

Precast concrete speed reducers of measures:
Length: 2360 mm.
Width: 1780 mm.
Central part height: 140 mm.
Exterior part height: 70 mm.

small monobloc concrete speed reducer

Precast concrete speed reducers of measures:
Length: 900 mm.
Width: 1500 mm.

More information

TECHNICAL SERVICE AND SALE OF SPEED REDUCERS

We have a technical department to provide service and advice in the facilities, we are manufacturers of rubber speed reducers / Berlin cushions and installers of speed reducer berling g uvm16g.
