Home > Street furniture > Fixed bollards > Esquirol bollard

ESQUIROL BOLLARD

Esquirol bollard in grey lacquered iron built with tube diameter ø 60, 76 or 90 mm. and 2 mm. of thickness. Height 1000 mm.

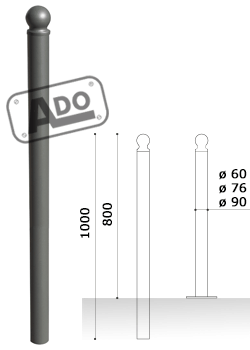

MEASURES

esquirol iron bollard

Ref. PESQUIROL01

Measures:
Diameter: ø 60 / 76 / 90 mm.
Visual height: 800 mm.
Total height: 1000 mm.
Thickness: 2 mm.

detail measures esquirol bollard

FEATURES FIXED ESQUIROL BOLLARD

  • Bollard made with a tube with a diameter of ø 60, 76 or 90 mm and an upper iron ball in one piece to prevent detachment.
  • Upper part with rounded edges avoiding possible damage to people.
  • Overall height 1000mm.

Standard finishes:

  • Oxiron de ø 60 mm. - Ref. PESQUIROL01
  • Oxiron de ø 76 mm. - Ref. PESQUIROL02
  • Oxiron de ø 90 mm. - Ref. PESQUIROL03

Opcional:

  • Plate for bollard ø 95 mm. - Ref. SUPP
  • Other colors to consult.
white esquirol bollard

Optional.

Recommended screws bollard with plate:

  • For concrete: Block of 11. - Ref. T11L
    tornilleria
  • For asphalt / panot: Block of 10. - Ref. T10X135
    tornilleria

Accessories:

  • 1 ring for bollard. - Ref. S1AP
  • 2 rings for bollard. - Ref. S2AP
  • Galvanized chain of ø 6 mm. - Ref. CG6100
  • 40mm brass padlock. with steel arch. - Ref. CNMCAD40
esquirol bollard installed

More information:

TECHNICAL SERVICE AND SALE OF FIXED IRON BOLLARDS

We have a technical department to provide service and advice on the facilities, we are manufacturers of fixed iron bollards of ø60, ø76, ø90 Pesquirol to embed or screw to the ground and installers dome bollard Uh23, sun bollard H307-2.
