GRANOLLERS BOLLARD

MEASURES

Ref. PGOLLERGB01

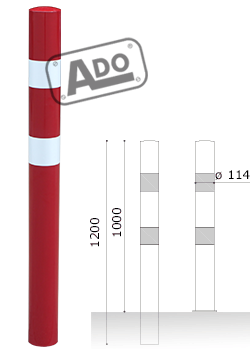

Measures:
Diameter: ø 114 mm.
Visual height: 1000 mm.
Total height: 1200 mm.
Thickness: 3 mm.

FEATURES GRANOLLERS FIXED BOLLARD

• Bollards built with internal and external anti-rust galvanized iron tube.
• Upper part with rounded edges avoiding possible damage to people.
• Anti-poster/sticker surface treatment.
• Galvanized iron tube with a diameter of 114 mm. and 3mm thick.
• Overall height 1200mm.

Standard finishes:

• Garnet / white color. - Ref. PGOLLERGB01
• Green / white color. - Ref.PGOLLERVB01
• Yellow / black color. - Ref.PGOLLERAN01

Optional:

• Plate for bollard ø 95 mm. - Ref. SUPP
• Other colors to consult.

Recommended screws bollard with plate:

• For concrete: Block of 11. - Ref. T11L

• For asphalt / panot: Block of 10. - Ref. T10X135


Accessories:

• 1 ring for bollard. - Ref. S1AP
• 2 rings for bollard. - Ref. S2AP
• Galvanized chain of ø 6 mm. - Ref. CG6100
• 40mm brass padlock. with steel arch. - Ref. CNMCAD40
