Home > Street furniture > Fixed bollards > Helmet bollard

HELMET BOLLARD

Helmet bollard built with ø 120 mm diameter iron tube. and 3 mm thick with lid on top. 200 x 200 mm bottom plate. with four holes to fix to the ground using 6 mm metal studs. thick with white or black adhesive vinyl depending on the model. Total height 810 mm.

MEASURES

helmet bollard

Ref. PHELMETAMN

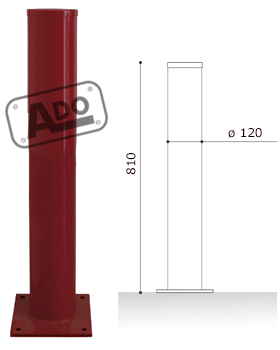

red helmet bollard

Ref. PHELMETR

Measures:
Diameter: ø 120 mm.
Total height: 810 mm.
Thickness: 3 mm.

FEATURES FIXED BOLLARD HELMET

  • Bollards built with galvanized iron tube.
  • Upper part with rounded edges avoiding possible damage to people.
  • Galvanized iron tube with a diameter of 120 mm. and 3mm thick.
  • Overall height 810mm.
detalle superior pilona helmet
Top detail.

Standard finishes:

  • Red + white vinyl. - Ref. PHELMETRB
  • Yellow + black vinyl. - Ref. PHELMETAMN
  • Red. - Ref. PHELMETR
  • Yellow. - Ref. PHELMETAM

Optional:

  • Other colors to consult.

Recommended screws:

  • For concrete: Block of 11. - Ref. T11L
    tornilleria
  • For asphalt / panot: Block of 10. - Ref. T10X135
    tornilleria
red and white helmet bollard

Accessories:

  • 1 ring for bollard. - Ref. S1AP
  • 2 rings for bollard. - Ref. S2AP
  • Galvanized chain of ø 6 mm. - Ref. CG6100
  • 40 mm brass padlock. with steel arch. - Ref. CNMCAD40

More information:

TECHNICAL SERVICE AND SALE OF FIXED IRON BOLLARDS

We have a technical department to provide service and advice in the facilities, we are manufacturers of fixed iron bollards of ø120 Phelmet to screw to the ground.
