Home > Street Furniture > Telescopic Bollards > Automatic Bollards > Luxemburgo automatic Bollards

LUXEMBURGO AUTOMATIC TELESCOPIC BOLLARD

luxemburgo automatic telescopic bollard

Upper-middle range hydraulic automatic telescopic bollards, ideal for places which require impact high-resistance.

Automatic bollards built with a tubular structure(rod), in AISI 304 stainless steel. The chassis is made of hot-dip galvanized steel, hydraulic motor, box caisson made of galvanized steel.

Automatic bollards are perfect for town halls, consulates, banks, shopping centres, luxury shops, ...

models of automatic bollards luxemburgo
Reference Diameter Thickness Rod Height
PEALU120X500 ø 114 mm. 8,5 mm. 500 mm.
PEALU220X500 ø 220 mm. 8 mm. 500 mm.
PEALU120X750 ø 114 mm. 8,5 mm. 750 mm.
PEALU220X750 ø 220 mm. 8 mm. 750 mm.

FEATURES

  • Hydraulic functioning through integrated drive system, which avoids external circuits and eventual breakdowns or load loss.
  • Sliding bollard’s system through interior guides located in the chassis itself.
  • Cover built from 8 mm thick plastic-coated iron with no overhang on the level of the roadway, engraved in anti-slip rings form and inner plastic ring for the correct sliding of the bollard, avoiding noises and chafing.
  • Chassis built of electrowelded high strength steel that has sliding rails to ensure the perfect alignment and concentricity of the bollard.
  • Strength (going up) 1,400 N.
  • Very silent up and down move.
  • Small depth in the installation.
  • Installation of a lost casing. It allows the replacement of the bollard, once installed, without the need for civil works.
    Installation of a lost casing
  • Easy installation (see easy assembly KIT).
  • Minimum preventive maintenance.
  • Choose between positive and negative security according to customer needs.

Automatic bollard that fulfil with CE policies.

normativa ce

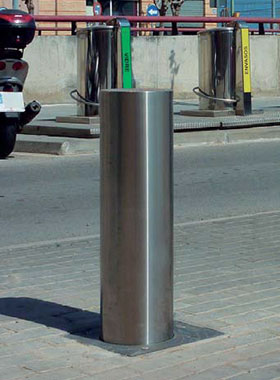

luxemburgo safety bollards installed luxemburgo safety bollards installed

LUXEMBURGO MODEL AUTOMATIC CUSTOMIZATION

  • Customized logo, emblem or text (dotted micro, laser or acid).
  • Special designs (according to customer needs).
Emblem, logo or text customization

Emblem, logo or text customization

Bespoken telescopic bollards

Bespoken telescopic bollards

OPTIONAL FIHISHES AUTOMATIC LUXEMBURGO BOLLARDS

  • Led ring 360º. with several colors to choose (RGB).
  • Gradient bollard construction according to slope or street level.
  • Vertical milling (6, 8 or 12 millings, according to the bollard ø).
  • Additional level 3 reflective tapes + horizontal milling.
  • Heater (to prevent ice formation).
  • Lower cover of stainless steel AISI 304 (on request AISI 316).
  • Bollard positioning micro indicators.
Vertical milling

Vertical milling

Extra milling

Extra milling

Limit switches

Limit switches

Stainless steel chassis cover

Stainless steel chassis cover

Corten steel

Corten steel

ACCESORIES AUTOMATIC LUXEMBURGO BOLLARDS

  • Opening systems to be chosen by the client: Remote controls, pushbuttons, proximity cards, TAGS, mobile phone opening system, license plate reader, time programming.
  • Sound detector (identifies the signal of approved sirens, ambulances, police, firemen,...) and lowers the bollards to allow emergency vehicles to pass without having to stop.
  • Security vehicle detectors (magnetic loop).
  • Security alarm so that the bollard is not manipulated.
  • Access control post.
  • Signal traffic light.
  • Automatic bollards caution traffic sign.
Top opening detector

Top opening
detector

Metallic mass detector

Metallic mass
detector

Connection kit

Connection kit

heating

Heating

Traffic signals

Traffic signals

Box Caisson

Box Caisson

Road plate

Road plate

Bollard manipulated alarm

Bollard manipulated alarm

More information:

Related products:

TECHNICAL AND AFTER-SALES SERVICE

We have a technical department to provide service and support in the facilities. We are manufacturers and installers of automatic and semi-automatic bollards. Our bollards are shipped with an easy-to-install kit and assembly instructions.

Automatic bollards, semi-automatic pivots, automatic bollard, semi-automatic, removable bollard, automatic retractable bollards, automatic bollards, semi-automatic bollards, automatic retractable bollards, access control, license plate reading, remote controls, automatic bollard installers, retractable bollards, removable bollards, retractable bollards, telescopic bollards, maintenance, automatic pivots, automatic bollards, streets, parks, town halls, public areas, pneumatics, prices, budget, automata, PLC, Siemens, control center, magnetic loop, presence detector, automatic retractable bollards, automatic bollards, automatic pivots, automatic stainless steel bollard, automatic security bollards, automatic anti-moon bollards, automatic retractable anti-theft bollards, semi-automatic bollards, security bollards, automatic iron bollard, semi-automatic bollard.

Upon request, we can manufacture semi-automatic and automatic bollards according to customer needs, adapting to all types of designs, measurements and thicknesses that the customer needs.
