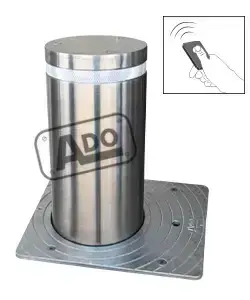

SYDNEY AUTOMATIC TELESCOPIC BOLLARD

sydney automatic telescopic bollard

High-range hydraulic automatic telescopic bollards (with box caisson) designed for intensive use, impact and vandalism high resistance.

Automatic bollards built with a tubular structure (rod), in AISI 304 stainless steel. The chassis is made of high-robustness electro welded steel, hydraulic motor, galvanized iron box caisson with framing.

Automatic Bollards suitable for town halls, consulates, banks, shopping centers, luxury shops, ...

sydney automatic bollards models
Reference Diameter Thickness Rod Height
PEASY120X500 ø 114 mm. 8,5 mm. 500 mm.
PEASY220X500 ø 220 mm. 8 mm. 500 mm.
PEASY120X750 ø 114 mm. 8,5 mm. 750 mm.
PEASY220X750 ø 220 mm. 8 mm. 750 mm.

FEATURES

  • Hydraulic functioning through integrated drive system, which avoids external circuits and eventual breakdowns or load loss.
  • Sliding bollard’s system through interior guides located in the chassis itself.
  • Cover built from 10 mm thick hot galvanized iron with no overhang on the level of the roadway, engraved in anti-slip rings form and inner plastic ring for the correct sliding of the bollard, avoiding noises and chafing. Security screws.
  • Chassis built of electrowelded high strength steel that has sliding rails to ensure the perfect alignment and concentricity of the bollard.
  • Strength (going up) 1,400 N.
  • Very silent up and down move.
  • Installation of a lost casing. It allows the replacement of the bollard, once installed, without the need for civil works.
    Installation of a lost casing
  • Easy installation (see easy assembly KIT).
  • Minimum preventive maintenance.
  • Choose between positive and negative security according to customer needs.

Automatic bollard that fulfil with CE policies.

normativa ce
sydney telescopic bollards installed sydney telescopic bollards installed sydney telescopic bollards installed sydney telescopic bollards installed
sydney telescopic bollards installed sydney telescopic bollards installed sydney telescopic bollards installed

SYDNEY MODEL AUTOMATIC CUSTOMIZATION

  • Customized logo, emblem or text (dotted micro, laser or acid).
  • Special designs (according to customer needs).
Emblem, logo or text customization

Emblem, logo or text customization

Bespoken telescopic bollards

Bespoken telescopic bollards

OPTIONAL FIHISHES AUTOMATIC SYDNEY BOLLARDS

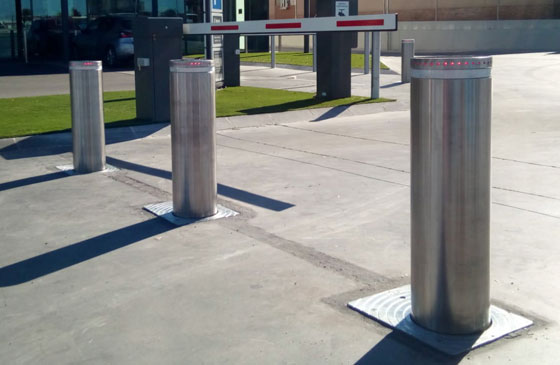

  • Led ring 360º. with several colors to choose (RGB).
  • Gradient bollard construction according to slope or street level.
  • Vertical milling (6, 8 or 12 millings, according to the bollard ø).
  • Additional level 3 reflective tapes + horizontal milling.
  • Heater (to prevent ice formation).
  • Lower cover of stainless steel AISI 304 (on request AISI 316).
  • Bollard positioning micro indicators.
Luminous crown

Luminous crown

Vertical milling

Vertical milling

Extra milling

Extra milling

Limit switches

Limit switches

Stainless steel chassis cover

Stainless steel chassis cover

Corten steel

Corten steel

ACCESORIES AUTOMATIC SYDNEY BOLLARDS

  • Opening systems to be chosen by the client: Remote controls, pushbuttons, proximity cards, TAGS, mobile phone opening system, license plate reader, time programming.
  • Sound detector (identifies the signal of approved sirens, ambulances, police, firemen,...) and lowers the bollards to allow emergency vehicles to pass without having to stop.
  • Security vehicle detectors (magnetic loop).
  • Security alarm so that the bollard is not manipulated.
  • Access control post.
  • Signal traffic light.
  • Automatic bollards caution traffic sign.
Top opening detector

Top opening
detector

Metallic mass detector

Metallic mass
detector

Connection kit

Connection kit

heating

Heating

Traffic signals

Traffic signals

Box Caisson

Box Caisson

Road plate

Road plate

Bollard manipulated alarm

Bollard manipulated alarm

More information:

Related products:

TECHNICAL AND AFTER-SALES SERVICE

We have a technical department to provide service and support in the facilities. We are manufacturers and installers of automatic and semi-automatic bollards. Our bollards are shipped with an easy-to-install kit and assembly instructions.

Automatic bollards, semi-automatic pivots, automatic bollard, semi-automatic, removable bollard, automatic retractable bollards, automatic bollards, semi-automatic bollards, automatic retractable bollards, access control, license plate reading, remote controls, automatic bollard installers, retractable bollards, removable bollards, retractable bollards, telescopic bollards, maintenance, automatic pivots, automatic bollards, streets, parks, town halls, public areas, pneumatics, prices, budget, automata, PLC, Siemens, control center, magnetic loop, presence detector, automatic retractable bollards, automatic bollards, automatic pivots, automatic stainless steel bollard, automatic security bollards, automatic anti-moon bollards, automatic retractable anti-theft bollards, semi-automatic bollards, security bollards, automatic iron bollard, semi-automatic bollard.

Upon request, we can manufacture semi-automatic and automatic bollards according to customer needs, adapting to all types of designs, measurements and thicknesses that the customer needs.
