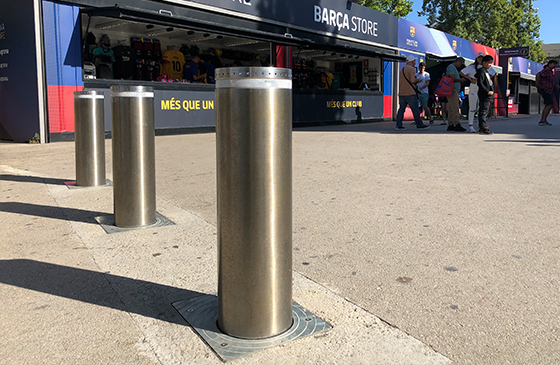

SYDNEY SEMIAUTOMATIC TELESCOPIC BOLLARD

sydney semiautomatic telescopic bollard

High-range semiautomatic telescopic bollards (with box caisson) designed for intensive use, impact and vandalism high resistance.

Semiautomatic bollards built with a tubular structure (rod), in AISI 304 stainless steel. The chassis is made of high-robustness electro welded steel, hydraulic motor, galvanized iron box caisson with framing.

Semiautomatic Bollards suitable for town halls, consulates, banks, shopping centers, luxury shops,...

sydney automatic bollards models
Reference Diameter Thickness Rod Height
PEMSY120X500 ø 114 mm. 8,5 mm. 500 mm.
PEMSY220X500 ø 220 mm. 8 mm. 500 mm.
PEMSY120X750 ø 114 mm. 8,5 mm. 750 mm.
PEMSY220X750 ø 220 mm. 8 mm. 750 mm.

FEATURES

  • High quality gas piston drive system that allows the bollard to emerge after unlocking the anchoring mechanism.
  • Opening and closing: it has a hole through which the lock can be accessed, thus unlocking the opening and closing mechanism. Lock bar constructed of stainless steel. Thus avoiding any type of wear and corrosion thus guaranteeing a long durability and perfect operation. When the upper part of the bollard is pressed, it descends, locking itself automatically once its journey is completed.
  • By inserting and turning the supplied triangular key. The anchoring system is unlocked allowing the bollard to emerge again on its own and locking itself again in the high position.
  • Bollard sliding system using interior guides located on the chassis itself.
  • Cover built from 10 mm thick plastic-coated iron with no overhang on the level of the roadway, engraved in anti-slip rings form and inner plastic ring for the correct sliding of the bollard, avoiding noises and chafing.
  • Chassis built of electrowelded high strength steel that has sliding rails to ensure the perfect alignment and concentricity of the bollard.
  • Small installation depth.
  • Installation of a lost casing. It allows the replacement of the bollard, once installed, without the need for civil works.
    Installation of a lost casing
  • Minimum preventive maintenance.

Semiautomatic bollard that fulfil with CE policies.

normativa ce
installation of semi-automatic bollards sydney installation of semi-automatic bollards sydney installation of semi-automatic bollards sydney installation of semi-automatic bollards sydney

SYDNEY MODEL SEMIAUTOMATIC CUSTOMIZATION

  • Customized logo, emblem or text (dotted micro, laser or acid).
  • Special designs (according to customer needs).
Emblem, logo or text customization

Emblem, logo or text customization

Bespoken telescopic bollards

Bespoken telescopic bollards

OPTIONAL FIHISHES SEMIAUTOMATIC SYDNEY BOLLARDS

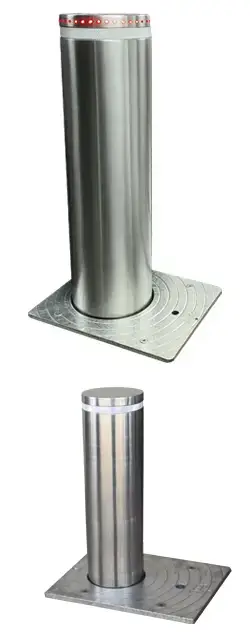

  • Led ring 360º. with several colors to choose (RGB).
  • Gradient bollard construction according to slope or street level.
  • Vertical milling (6, 8 or 12 millings, according to the bollard ø).
  • Additional level 3 reflective tapes + horizontal milling.
  • Lower cover of stainless steel AISI 304 (on request AISI 316).
  • Protection cover for security lock.
  • Car wheel anti-theft type security key.
Vertical milling

Vertical milling

Extra milling

Extra milling

Car wheel anti-theft type security key

Car wheel anti-theft type security key

Stainless steel chassis cover

Stainless steel chassis cover

Corten steel

Corten steel

More information:

Related products:

TECHNICAL AND AFTER-SALES SERVICE

We have a technical department to provide service and support in the facilities. We are manufacturers and installers of automatic and semi-automatic bollards. Our bollards are shipped with an easy-to-install kit and assembly instructions.

Automatic bollards, semi-automatic pivots, automatic bollard, semi-automatic, removable bollard, automatic retractable bollards, automatic bollards, semi-automatic bollards, automatic retractable bollards, access control, license plate reading, remote controls, automatic bollard installers, retractable bollards, removable bollards, retractable bollards, telescopic bollards, maintenance, automatic pivots, automatic bollards, streets, parks, town halls, public areas, pneumatics, prices, budget, automata, PLC, Siemens, control center, magnetic loop, presence detector, automatic retractable bollards, automatic bollards, automatic pivots, automatic stainless steel bollard, automatic security bollards, automatic anti-moon bollards, automatic retractable anti-theft bollards, semi-automatic bollards, security bollards, automatic iron bollard, semi-automatic bollard.

Upon request, we can manufacture semi-automatic and automatic bollards according to customer needs, adapting to all types of designs, measurements and thicknesses that the customer needs.
