Home > Street furniture > Bicycle parking > Arra bicycle parking

BICYCLE PARKING ARRA

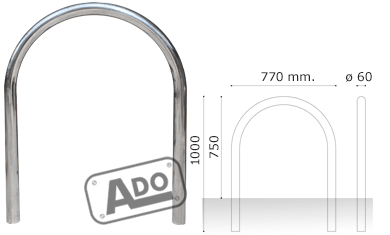

bicycle parking arra

Ref. ARRAI304

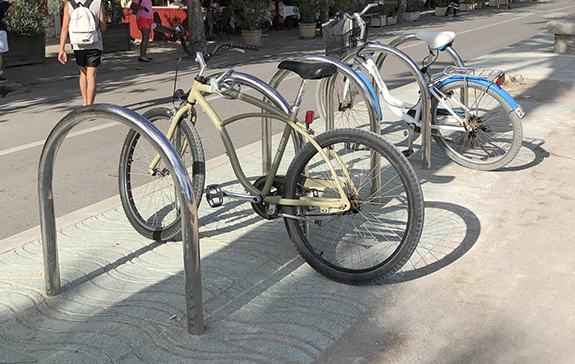

bicycle parking arra intalled

Arra bike rack built in galvanized steel or 304 or 316 stainless steel. Installation using metal studs, rods or legs to embed in the ground.

Measures:
Visual height: 750 mm.
Total height: 1000 mm.
Length: 770 mm.
Tube diameter: ° 60 mm.

Standard finishes:

  • Sendzimir galvanized steel constructed with ø 60 mm.
    Ref. ARRAG
  • Sendzimir galvanized steel built with ° 48 mm. tube with plate. Ref. ARRAGP

  • AISI 304 stainless steel built with tube of ø 60,3 mm.
    Ref. ARRAI304
  • AISI 304 stainless steel built with tube of ø 60,3 mm with plate. Ref. ARRAIP304

  • AISI 316 stainless steel built with tube of ø 60,3 mm.
    Ref. ARRAI316
  • AISI 316 stainless steel built with tube of ø 60,3 mm with plate. Ref. ARRAIP316

Mounting using metal studs.

Embellisher (optional):

  • Embellisher corten steel. Ref. EAPARCAG
  • Embellisher stainless steel. Ref. EAPARCAI
bike rack cover

BICYCLE PARKING ARRA SET

bicycle parking arra set

Ref. ARRAG4

bicycle parking arra set installed

Arra Bicycle Parking Set built in galvanized steel or 304 or 316 stainless steel with 4, 5 or 6 round tube spacers. 80x8 longitudinal lower handrail. Welded lower rods for later placement on site.

Standard finishes:

Sendzimir galvanized steel constructed with ø 60mm.

Reference A (mm) B (mm) C (mm) Units
ARRAG2 862 790 750 4 bikes
ARRAG3 1562 790 750 6 bikes
ARRAG4 2265 790 750 8 bikes
ARRAG5 2965 790 750 10 bikes
ARRAG6 3665 790 750 12 bikes

304 stainless steel constructed with ø 60.3mm

Reference A (mm) B (mm) C (mm) Units
ARRAI3042 862 790 750 4 bikes
ARRAI3043 1562 790 750 6 bikes
ARRAI3044 2265 790 750 8 bikes
ARRAI3045 2965 790 750 10 bikes
ARRAI3046 3665 790 750 12 bikes

316 stainless steel constructed with ø 60.3mm

Reference A (mm) B (mm) C (mm) Units
ARRAI3162 862 790 750 4 bikes
ARRAI3163 1562 790 750 6 bikes
ARRAI3164 2265 790 750 8 bikes
ARRAI3165 2965 790 750 10 bikes
ARRAI3166 3665 790 750 12 bikes

Mounting using metal studs, rods or legs to embed in the ground.

bicycle parking arra set installed

More information:

TECHNICAL SERVICE AND SALE OF BICYCLE PARKING

We have a technical department to provide service and advice in the facilities, we are manufacturers of outdoor bicycle racks in iron or corten steel. Individual or joint bike rack installers and Sagra bike rack installers.
