Home > Street furniture > Fixed bollards > Dalo bollard

DALO BOLLARD

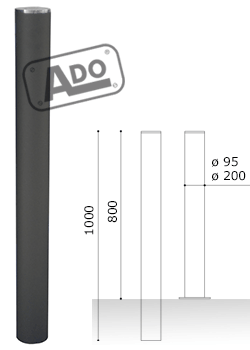

Dalo bollard built with ø 95/200 mm diameter iron tube. and 2.5 mm. of thickness. With 8mm stainless steel top cap. Total height 1000 mm.

MEASURES

dalo fixed bollard

Ref. PDALOGIB

Measures:
Diameter: ø 95 / 220 mm.
Visual height: 800 mm.
Total height: 1000 mm.
Thickness: 2,5mm.


More information

FEATURES FIXED DALO BOLLARD

  • Bollards built with internal and external anti-rust galvanized iron tube.
  • Upper part with rounded edges avoiding possible damage to people.
  • Anti-poster/sticker surface treatment.
  • Galvanized iron tube with a diameter of 95 / 220 mm. and 2.5mm thick.
  • Overall height 1000mm.

Glossy finish cover:

  • Grey oxiron ø 95 mm. - Ref. PDALOGIB
    Grey oxiron ø 200 mm. - Ref. PDALOGIB02

Matte finish cover:

  • Grey oxiron ø 95 mm. - Ref. PDALOGIM
    Grey oxiron ø 200 mm. - Ref. PDALOGIM02

Optional:

  • Plate for bollard ø 95 mm. - Ref. SUPP
  • Plate for bollard ø 200 / 220 mm. - Ref. SUPP2
  • Customization with logo engraving.
  • Possibility of manufacturing in imitation corten or in other colors (according to Ral letter).

Recommended screws bollard with plate:

  • For concrete: Block of 11. - Ref. T11L
    tornilleria
  • For asphalt / panot: Block of 10. - Ref. T10X135
    tornilleria

Accessories:

  • 1 ring for bollard. - Ref. S1AP
  • 2 rings for bollard. - Ref. S2AP
  • Galvanized chain of ø 6 mm. - Ref. CG6100
  • 40mm brass padlock. with steel arch. - Ref. CNMCAD40
bollard dalo installation bollard dalo installation

TECHNICAL SERVICE AND SALE OF FIXED IRON BOLLARDS

We have a technical department to provide service and advice in the facilities, we are manufacturers of fixed iron bollards of ø95 ø200 Pdalo to embed or screw to the ground and deca Uh13 bollard installers.
