Ola individual bicycle rack, ideal bicycle rack for public places: parks, gardens, schools, town halls... as well as in private places: urbanizations, communities of owners...
Ref. OLAI304

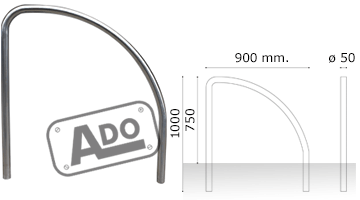

Measures:
Visual height: 750 mm.
Total height: 1000 mm.
Length: 900 mm.
Tube diameter: ø 50,8 mm.
Ola bicycle parking built with a 50.8 mm diameter tube. in AISI 304 or 316 stainless steel and curved arch.
Standard finishes:
Embellisher (optional):
Ref. OLAIP3165

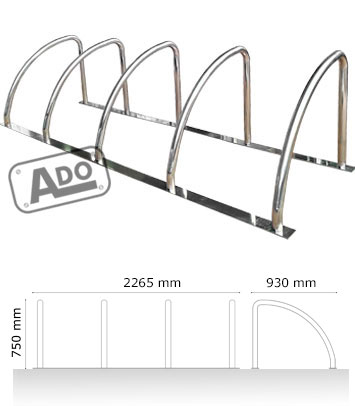

Ola model bicycle rack set built in AISI 304 or 316 stainless steel with round tube supported on handrails.
Installation using metal plugs, rods or legs to be embedded in the ground.
Standard finishes:
AISI 304 stainless with plate:
| References | A (mm) | B (mm) | C (mm) | Units |
|---|---|---|---|---|
| OLAIP3044 | 2265 | 900 | 750 | 8 bikes |
| OLAIP3045 | 2962 | 900 | 750 | 10 bikes |
AISI 316 stainless with plate:
| References | A (mm) | B (mm) | C (mm) | Units |
|---|---|---|---|---|
| OLAIP3164 | 2265 | 900 | 750 | 8 bikes |
| OLAIP3165 | 2962 | 900 | 750 | 10 bikes |
More information:
We have a technical department to provide service and advice in the facilities, we are manufacturers of outdoor bicycle racks in iron or corten steel. Individual or joint bike rack installers and Sagra bike rack installers.
