STAINLESS STEEL FIXED TECOR BOLLARD

Tecor stainless steel bollard with flute-type upper cut, built with 2 mm AISI 304 stainless steel tube. of thickness. Total height 1000 mm.

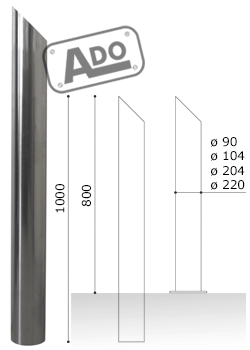

MEASURES

stainless steel fixed tecor bollard

Ref. PITECOR90B

Measures:
Diameter: ø 90/104/204/220 mm.
Visible height: 800 mm.
Total height: 1000 mm.

FIXED BOLLARD CHARACTERISTICS TECOR

  • Bollard made of AISI 304 stainless steel tube.
  • Total height 1000 mm.

Standard finishes:

  • Glossy finish of ø 90 mm. with flute-like cut. - Ref. PITECOR90B
  • Matte finish ø 90 mm. with flute-like cut. - Ref. PITECOR90M

  • Glossy finish of ø 104 mm. with flute-like cut. - Ref. PITECOR104B
  • Matte finish ø 104 mm. with flute-like cut. - Ref. PITECOR104M

  • Glossy finish ø 204 mm. with flute-like cut. - Ref. PITECOR204B
  • Matte finish of ø 204 mm. with flute-like cut. - Ref. PITECOR204M

Optional:

  • AISI 316 stainless steel.
  • Plate for stainless steel bollard ø 95 mm. - Ref. SUPPI
  • Plate for stainless steel bollard ø 100 mm. - Ref. SUPPI1
  • Plate for stainless steel bollard ø 200 mm. - Ref. SUPPI2
  • Customization with logo engraving.
  • Two or more stripes.

Recommended screws bollard with plate:

  • For concrete: Block of 11. - Ref. T11L
    tornilleria
  • For asphalt / panot: Block of 10. - Ref. T10X135
    tornilleria

Accessories:

  • 1 ring for stainless bollard. - Ref. S1API
  • 2 rings for stainless steel bollard. - Ref. S2API
  • Galvanized chain of ø 6 mm. - Ref. CG6100
  • 40mm brass padlock. with steel arch. - Ref. CNMCAD40
tecor bollard installed tecor bollard engraved logo

More information:


TECHNICAL SERVICE AND SALE OF FIXED STAINLESS STEEL BOLLARDS

We have a technical department to provide service and advice on the facilities, we are manufacturers of Ptecor stainless steel fixed bollards to embed or screw to the ground or and installers As Uh3 bollard, montreal stainless steel bollard c-500, stainless steel bollard H2531.
