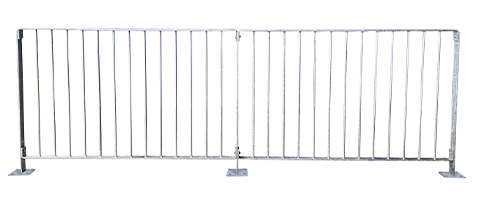

Barcino modular railing / fence built with a handrail frame and solid round bars.
Separation of bars according to regulations to avoid causing possible damage. All materials are solid to ensure strength and durability.
Ref. BARESG1.5P

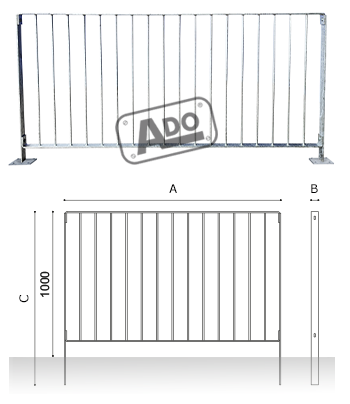

Measures:
Galvanized finish with Plate.
Reference | Finish | A | B | C |
BARESG1.0P | ![]() |
1000 | 50 | 1000 |
BARESG1.5P | ![]() |
1500 | 50 | 1000 |
BARESG2.0P | ![]() |
2000 | 50 | 1000 |
Galvanized finish to embedding.
Reference | Finish | A | B | C |
BARESG1.0 | ![]() |
1000 | 50 | 1200 |
BARESG1.5 | ![]() |
1500 | 50 | 1200 |
BARESG2.0 | ![]() |
2000 | 50 | 1200 |
More information:
Ares Plus continuous urban railing built with a 50x8 folded handrail frame and Ø10 solid round bars. of great resistance. Round tube upper handrail ø 50 mm.
Modular exterior railing ideal for delimiting all types of environments such as parks, gardens...
Ref. BARESPG1.5P
Measures:
Galvanized finish with Plate.
Reference | Finish | A | B | C |
BARESPG1.0P | ![]() |
1000 | 50 | 1150 |
BARESPG1.5P | ![]() |
1500 | 50 | 1150 |
BARESPG2.0P | ![]() |
2000 | 50 | 1150 |
Galvanized finish to embedding.
Reference | Finish | A | B | C |
BARESPG1.0 | ![]() |
1000 | 50 | 1350 |
BARESPG1.5 | ![]() |
1500 | 50 | 1350 |
BARESPG2.0 | ![]() |
2000 | 50 | 1350 |
More information:
We have a technical department to provide service and advice on the installations, we are manufacturers of iron or stainless steel fences / railings to embed or screw to the ground and installers of urban railings.
