Home > Street furniture > Fixed bollards > Inox bollard

STAINLESS STEEL FIXED BOLLARD

Inox model stainless steel bollards. built with 2 mm of thickness and AISI 304 stainless steel tube.

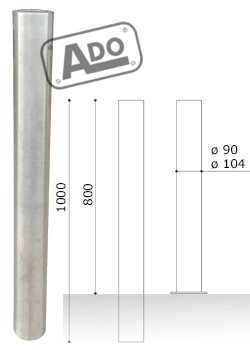

STAINLESS STEEL FIXED BOLLARD ø 90 / 104 mm.

fixed stainless steel bollards

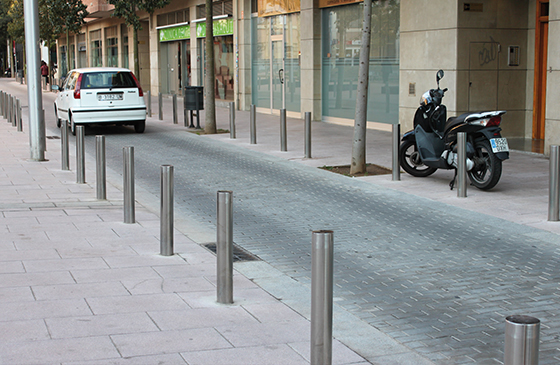

fixed stainless bollards installed fixed stainless steel bollards

MEASURES

inox bollard

Ref. PINOX90M

Measures:
Diameter: ø 90/104 mm.
Visible height: 800 mm.
Total height: 1000 mm.

FEATURES FIXED STAINLESS STEEL BOLLARD °90 / 104mm.

Stainless steel bollard with ø 90/104 mm. diameter and height 1000 mm.

Standard finishes for recessing:

  • Glossy finish ø 90 mm. - Ref. PINOX90B
  • Matte finish ø 90 mm. - Ref. PINOX90M
  • Glossy finish ø 104 mm. - Ref. PINOX104B
  • Matte finish ø 104 mm. - Ref. PINOX104M

Standard finishes with plate:

  • Glossy finish ø 90 mm. - Ref. PINOX90BPC
  • Matte finish ø 90 mm. - Ref. PINOX90MPC
  • Glossy finish ø 104 mm. - Ref. PINOX104BPC
  • Matte finish ø 104 mm. - Ref. PINOX104MPC

Optional:

  • AISI 316 stainless steel.
  • Plate for stainless bollard ° 90 mm. - Ref. SUPPI
  • Plate for stainless bollard ° 104 mm. - Ref. SUPPI1
  • Personalization with logo engraving.

Recommended screws bollard with plate:

  • For concrete: Block of 11. - Ref. T11L
    screws
  • For asphalt / panot: Block of 10. - Ref. T10X135
    screws

Accessories:

  • 1 ring for bollard. - Ref. S1AP
  • 2 rings for bollard. - Ref. S2AP
  • Galvanized chain of ø 6 mm. - Ref. CG6100
  • Polished stainless steel trim ring ø90.
    Ref. AROØ141Ø91
  • Polished stainless steel trim ring ø104.
    Ref. AROØ146Ø106
matte finish option
Matte finish option. glossy finish option
Glossy finish option.

More information:

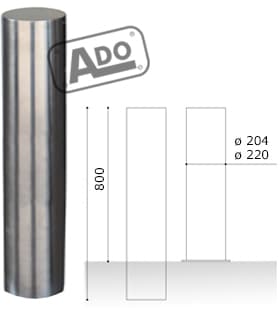

STAINLESS STEEL FIXED BOWL ø 204 mm.

MEASURES

stainless fixed bollard diameter 204

Measures:
Diameter: ø 204 mm.
Visible height: 800 mm.
Total height: 1000 mm.

stainless fixed bollards diameter 200 installed

FEATURES FIXED STAINLESS STEEL BOLLARD °204 / 220mm.

Stainless steel bollard matte finish with ø 204 mm. diameter and height 1000 mm.

Standard finishes for recessing:

  • Glossy finish. - Ref. PINOX204B
  • Matte finish. - Ref. PINOX204M

Standard finishes with plate:

  • Glossy finish. - Ref. PINOX204BPC
  • Matte finish. - Ref. PINOX204MPC

Optional:

  • AISI 316 stainless steel.
  • Plate for stainless steel bollard ø 200 mm. - Ref. SUPPI2
  • Customization with logo engraving.

Recommended screws bollard with plate:

  • For concrete: Block of 11. - Ref. T11L
    screws
  • For asphalt / panot: Block of 10. - Ref. T10X135
    screws

Accessories:

  • 1 ring for bollard. - Ref. S1AP
  • 2 rings for bollard. - Ref. S2AP
  • Galvanized chain of ø 6 mm. - Ref. CG6100
  • Polished stainless steel trim ring ø204.
    Ref. AROØ246Ø206
  • Polished stainless steel trim ring ø220.
    Ref. AROØ262Ø222
detalle pilona inox mate
Matte finish option. glossy finish option
Glossy finish option.

More information:

CADI STAINLESS STEEL CHAIN BOLLARD

stainless steel chain barrier

CADI manual chain barrier composed of two stainless steel bollards with a galvanized steel chain housed inside one of the bollards.

Bollard with security lock that allows the chain to be collected inside the bollard.

Optional:

  • Stainless steel chain.

Ref. CADI

TECHNICAL SERVICE AND SALE OF FIXED STAINLESS STEEL BOLLARDS

We have a technical department to provide service and advice in the facilities, we are manufacturers of fixed Pinox stainless steel bollards to embed or screw to the ground or and installers As Uh3 bollard, montreal bollard stainless c-500, stainless bolt H2531.
