Home > Street furniture > Bicycle parking > Universal bicycle parking

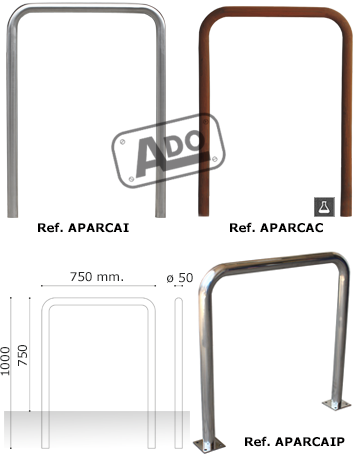

BICYCLE PARKING UNIVERSAL

universal bike rack

Bicycle parking Universal manufactured in galvanized iron or stainless steel 304. Installation by metal plugs or embedding.

Standard finishes:

  • Galvanized steel built with ø 48 mm. tube.
    Ref. APARCAG
  • Galvanized steel built with ø 48 mm. tube with plate.
    Ref. APARCAGP
  • Corten steel built with ø 48 mm tube. - Ref. APARCAC
  • Stainless steel built with ø 50.8 mm. tube. - Ref. APARCAI
  • Stainless steel built with ø 50.8 mm. tube. with plate.
    Ref. APARCAIP

Embellisher (optional):

  • Embellisher galvanized steel. Ref. EAPARCAG
  • Embellisher stainless steel. Ref. EAPARCAI
bike rack cover

Measures:
Visual height: 750 mm.
Total height: 1000 mm.
Length: 750 mm.
Tube diameter:
ø 48 / 50,8 mm.

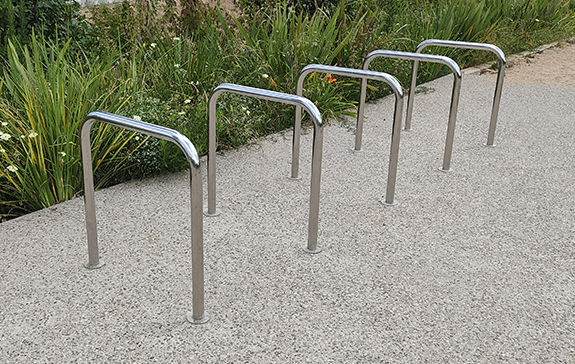

universal bike rack installed
universal bike rack with trim universal bike rack installed universal bike rack installed

BICYCLE PARKING UNIVERSAL SET

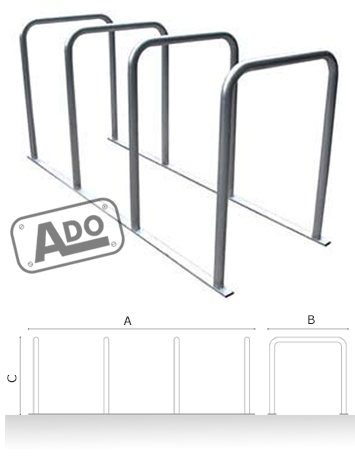

universal bike rack set

Bicycle parking universal set manufactured in galvanized iron and stainless steel 304. Longitudinal railing with inferior rods welded for later placement on site. Possibility of choosing sets of 2, 3, 4, 5 o 6.

Standard finishes:

Galvanized steel, built with ø 48mm.

Reference A (mm) B (mm) C (mm) Units
UNIVG2 845 781 750 4 bikes
UNIVG3 1500 781 750 6 bikes
UNIVG4 2225 781 750 8 bikes
UNIVG5 2915 781 750 10 bikes
UNIVG6 3605 781 750 12 bikes

Stainless steel, built with ø 50.8mm

Reference A (mm) B (mm) C (mm) Units
UNIVI2 845 781 750 4 bikes
UNIVI3 1500 781 750 6 bikes
UNIVI4 2225 781 750 8 bikes
UNIVI5 2915 781 750 10 bikes
UNIVI6 3605 781 750 12 bikes

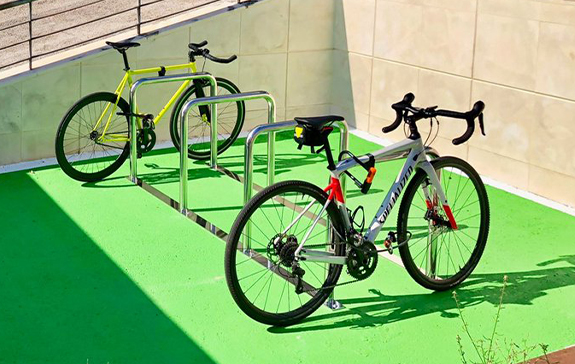

bike rack universal set installed bike rack universal set installed bike rack universal set installed

More information:

BICYCLE PARKING SIT

bicycle parking sit

Ref. ASITG01

Sit bicycle parking built with AISI-304 stainless steel round tube, with angled structure and two 750x110x35 mm tropical wood slats.

Ideal for sitting down, leaving the packages (helmet, backpack, etc.) at the time of tying the bicycle without leaving them on the ground,...

Measures:
Width: 320 mm.
Visual height: 750 mm.
Total height: 1000 mm.
Length: 750 mm.
Wooden strip: 750x110x35 mm.

Standard finishes:

  • Galvanized steel, built with ø 48 mm. Ref. ASITG01
  • Stainless steel, built with ø 50,8 mm. Ref. ASITI01


More information:

Sit bicycle parking pdf Sit bicycle parking datasheet

TECHNICAL SERVICE AND SALE OF BICYCLE PARKING

We have a technical department to provide service and advice in the facilities, we are manufacturers of outdoor bicycle racks in iron or corten steel. Individual or group bike rack installers, U uvap4 bike rack, universal vbu01 bike rack, Barcelona a-06 bike rack, Almanzor bike rack.
