Home > Road signaling > Road studs > Frost wired road studs light

WIRED ROAD STUDS LIGHT FROST

Frost wired light road studs ideal for signaling on roads, tunnels, parks and airports.

MEASURES

frost wired road studs 01

Ref. FROST-01

frost wired road studs 02

Ref. FROST-02

frost wired road studs 03

Ref. FROST-03

FEATURES FROST ROAD STUDS

The light luminous beacons are specially developed to illuminate historical areas and pedestrian zones where it is necessary to project vertical lighting.

The illuminated light poles are very powerful with high visibility LEDs from 1 kilometer away. They are more robust and durable than traditional lighting, waterproof and impact resistant.

Technical features:

  • Road light beacon with lighting.
  • Low height of the road surface.
  • High brightness day or night.
  • 100% waterproof.
  • High brightness LEDs.
  • Low maintenance.
  • Operating mode: Always on, intermittent, sequential (with
    external controller).

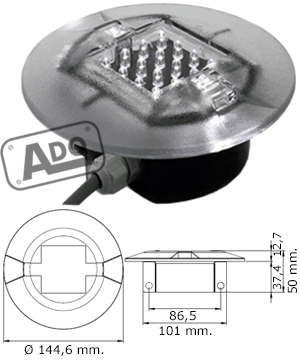

Technical features (model road studs FROST-01):

  • Power supply: 12Vdc or 24Vdc.
  • Current consumption: 200mA.
  • Number of Leds: Up to 20 Leds.
  • Measurements: ø144.6x50 mm.
  • Led Color: Amber, Red, White, Blue, Green.
  • Material: polycarbonate.
  • Mechanical resistance 60 Tons.
  • Protection Index: IP68 and IK10.
  • Weight: 0.5 Kg.

Technical features (model road studs FROST-02):

  • Power supply: 12Vdc or 24Vdc.
  • Current consumption: 200mA.
  • Number of Leds: Up to 20 Leds.
  • Measurements: ø144x87 mm.
  • Led Color: Amber, Red, White, Blue, Green.
  • Material: Aluminum or polycarbonate (top) and aluminum (bottom).
  • Mechanical resistance 20 tons.
  • Protection Index: IP68 and IK10.
  • Weight: 1 Kg.

Technical features (model road studs FROST-03):

  • Power supply: 12Vdc or 24Vdc.
  • Current consumption: 300mA.
  • Number of Leds: Up to 30 Leds.
  • Measurements: ø145x89 mm.
  • Led Color: Amber, Red, White, Blue, Green.
  • Material: polycarbonate (upper) and aluminum (lower).
  • Mechanical resistance 18 tons.
  • Protection Index: IP68 and IK10.
  • Weight: 1kg.

TECHNICAL SERVICE AND SALE OF WIRED ROAD STUDS LIGHT

We have a technical department to provide service and advice on installations, we are manufacturers of LED recessed light fixtures.
