Home > Street furniture > Litter bins > Circu litter bin

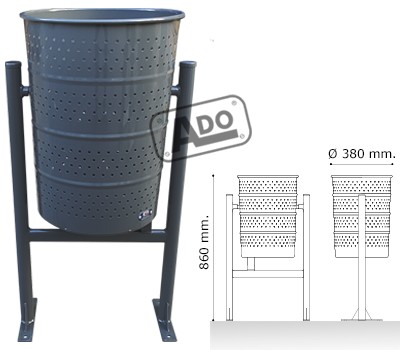

IRON CIRCU LITTER BIN

Circu circular urban iron bin with circular shape for outdoor areas. Urban litter bin designed and manufactured with functional designs that are ideal for urban environments and public spaces such as parks, gardens, streets, etc....

litter bin iron galvanizated

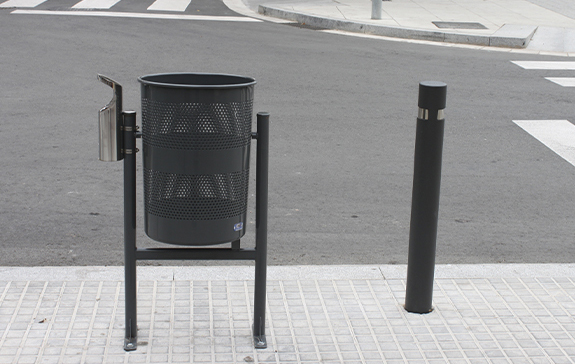

litter bin iron installed litter bin corten imitation

SIZE

circu litter bin gray lacquered iron

Ref. PAPEHIER60L

Size:
Diameter: ø 380 mm.
Height: 860 mm.
Capacity: 49 l.

CIRCU STEEL LITTER BIN FEATURES

Circu urban steel litter bin constructed from micro-perforated metal sheet and round tubes with a bottom plate for ground installation by means of metal screw threads.

Standard finishes:

  • Grey lacquered. - Ref. PAPEHIER60L
  • Faux weathering. - Ref. PAPEHIER60LIC

Optional:

  • Logo customization:
    - Logo creation. - Ref. CRELOG
    - Logo preparation on engraver. - Ref. CRELOGMAQ
    -
    Logo engraving on stainless steel sheet.
    Ref. SUPPLALOG
  • Stainless steel inner ring to hold garbage bags. - Ref. AIP360
  • Hinged lid for circular bins. - Ref. TPPAPEHIER60L
engraved logo detail

detail ring litter bin

Bag holder inner ring.

Upper lid

Upper lid.

× logo
tilting emptying bin Tipping emptying system.

Recommended plate anchors:

  • Concrete ground: M11 screw thread. - Ref. T11L
    screws
  • Asphalt/panot ground: M10 screw thread. - Ref. T10X135
    screws

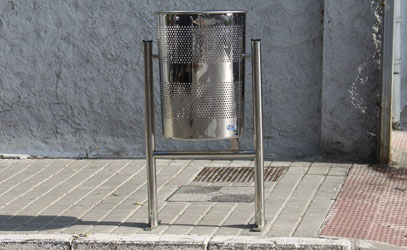

CIRCU STAINLESS STEEL LITTER BIN

Circu urban litter bin with circular shape for outdoor areas. Urban litter bin designed and manufactured with functional designs that are ideal for urban environments and public spaces such as parks, gardens, streets, etc....

SIZE

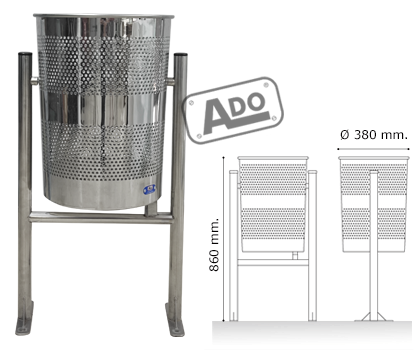

litter bins circu stainless steel

Ref. PAPEINOX60L

Size:
Diameter: ø 380 mm.
Height: 860 mm.
Capacity: 49 l.

CIRCU STAINLESS STEEL LITTER BIN FEATURES

Circu urban stainless steel litter bin made out of micro-perforated sheet and round tubes with a bottom plate for ground installation by means of metal screw threads.

Standard finishes:

  • Stainless steel. - Ref. PAPEINOX60L

Optional:

  • Logo customization:
    - Logo creation. - Ref. CRELOG
    - Logo preparation on engraver. - Ref. CRELOGMAQ
    -
    Logo engraving on stainless steel metalsheet.
    Ref. SUPPLALOG
  • Stainless steel inner ring to hold garbage bags. - Ref. AIP360
engraved logo detail

detail ring litter bin

Bag holder inner ring.

tilting emptying bin Tipping emptying system.

Recommended plate anchors:

  • Concrete ground: M11 screw thread. - Ref. T11L
    screws
  • Asphalt/panot ground: M10 screw thread. - Ref. T10X135
    screws

LILLA ASHTRAY

5Lilla ashtray for outdoor use, compatible with round tubes up to ø 40 mm or direct wall fixation. Ashtray can be emptied from the bottom by means of a spring-loaded lid.

SIZE

ashtrays lilla

Size:
Diameter: ø 80 mm.
Height: 270 mm.
Inner bucket capacity: 0,75 l.

LILLA ASHTRAY FEATURES

Complementary ashtray for round-tubed urban litter bins.

Finishes:

  • Grey lacquered. - Ref. CLILLALG01
  • Stainless steel. - Ref. CLILLA01

Installation:

  • By means of 2 flanges (included) or M6 screws, sheet screws or chemical anchors (not included).
gray lacquered litter bin ashtray stainless steel bin ashtray

More information:

TECHNICAL SERVICE AND URBAN LITTER BINS SALE

We have a technical department to provide service and consultation on installations, we are manufacturers of urban ordinary or stainless steel litter bins. Pa600m, pa600mi, barcelona c-23g, up3 circular litter bins installers. Consult our sale technicians for advice on the urban litter bin that best suits your needs.
