Home > Street Furniture > Removable bollards > City removable bollard

CITY REMOVABLE BOLLARD REINFORCED LOWER KEY (patented model)

city removable bollard

Ref. PCITYE

Measures:
Diameter: ø 95 mm.
Visible height: 800 mm.
Total height: 1000 mm.
Thickness: 2,5 mm.

city bollard reinforcement detail
Bollard reinforcement detail
avoiding thus breaking the top.


Rounded edge details
Rounded edge details.

Removable reinforced city bollard, created at the request of municipalities to solve the problem of breakage in the upper part of bollards with a stainless steel ring.

In this way we have created our REMOVABLE REINFORCED CITY bollard made in one piece to solve this common problem that can harm pedestrians and damage the image of the city and the places where they are installed. Ground anchor base to accommodate the bollard with lock for universal triangular key on the upper cover of the base.

removable city bollard installation
lower key removable city bollard installation
installation of removable city bollards lower key

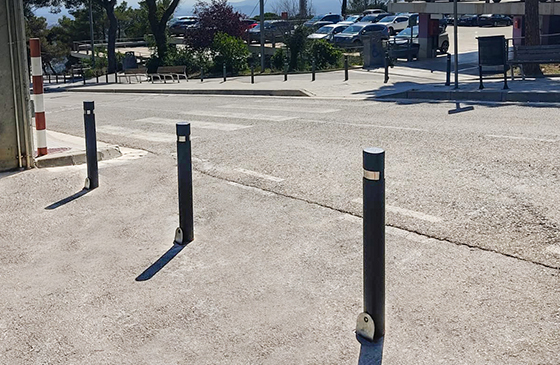

city removable bollard installed

Features:

  • Bollards built with galvanized iron tube.
  • Iron tube with a diameter of ø 95 mm. and 3 mm. of thickness.
  • Total height 970 mm.
  • Iron tube cut by laser joining the upper and lower parts by 2 strips of the same tube, thus avoiding the frequent breakage of the upper part of the Hospitalet bollard.
  • Iron finish painted in black oxiron, wood imitation and Ral letter color to choose from.

Optional:

  • Logo customization:
    - Logo creation on bollards. - Ref. CRELOG
    - Preparation of the logo on an engraving machine. - Ref. CRELOGMAQ
    - Engrave logo on 1-sided bollards. - Ref. LOGPI1C
    - Engrave logo on 2-sided bollards. - Ref. LOGPI2C

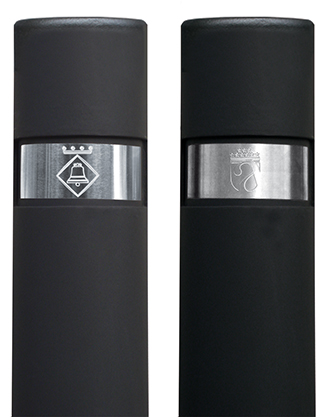

    logo personalizado
  • Reflecting tape.
  • Extra removable base. - Ref. BEXTRA95
  • Extra removable key. - Ref. LLPE
  • Other colors (according to Ral chart).

Accessories:

  • 1 ring for bollard.
    Ref. S1AP
  • 2 rings for bollard.
    Ref. S2AP
  • Galvanized chain of ø 6 mm.
    Ref. CG6100

More information:

CITY REMOVABLE BOLLARD REINFORCED UPPER KEY (patented model)

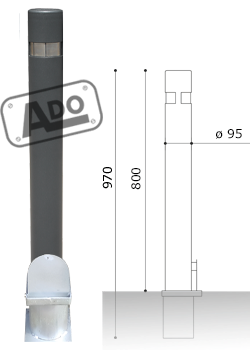

city removable bollard upper key

Ref. PCITYELS

Measures:
Diameter: ø 95 mm.
Visible height: 800 mm.
Total height: 970 mm.
Thickness: 2,5 mm.

Removable reinforced city bollard manufactured in a single piece to solve this common problem that can harm pedestrians and damages the image of the city and the places where they are installed.

Galvanized base for anchoring to the ground, to house the bollard to lock it with a universal triangular key lock on the upper part of the bollard.

removable bollard opening detail upper key Easy opening and closing.

Features:

  • Bollards built with galvanized iron tube.
  • Iron tube with a diameter of ø 95 mm. and 3 mm. of thickness.
  • Total height 970 mm.
  • Iron tube cut by laser joining the upper and lower parts by 2 strips of the same tube, thus avoiding the frequent breakage of the upper part of the Hospitalet bollard.
  • Iron finish painted in black oxiron, wood imitation and Ral letter color to choose from.

Optional:

  • Logo customization:
    - Logo creation on bollards. - Ref. CRELOG
    - Preparation of the logo on an engraving machine. - Ref. CRELOGMAQ
    - Engrave logo on 1-sided bollards. - Ref. LOGPI1C
    - Engrave logo on 2-sided bollards. - Ref. LOGPI2C
    logo personalizado
  • Reflecting tape.
  • Extra removable base. - Ref. BEXTRA95
  • Extra removable key. - Ref. LLPE
  • Other colors (according to Ral chart).

Accessories:

  • 1 ring for bollard.
    Ref. S1AP
  • 2 rings for bollard.
    Ref. S2AP
  • Galvanized chain of ø 6 mm.
    Ref. CG6100

More information:

REMOVABLE REINFORCED CITY BOLLARD WITH PADLOCK

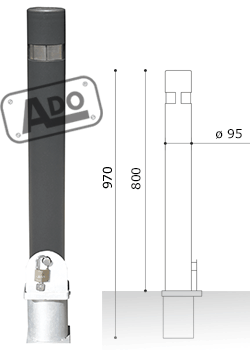

removable bollard city padlock

Ref. PCITYEC

Measures:
Diameter: ø 95 mm.
Visible height: 800 mm.
Total height: 970 mm.
Thickness: 2,5 mm.

Removable reinforced city bollard manufactured in a single piece to solve this common problem that can harm pedestrians and damages the image of the city and the places where they are installed.

Galvanized base for anchoring to the ground, to house the bollard to block it with the cover and padlock.

Features:

  • Bollards built with galvanized iron tube.
  • Iron tube with a diameter of ø 95 mm. and 3 mm. of thickness.
  • Total height 970 mm.
  • Iron tube cut by laser joining the upper and lower parts by 2 strips of the same tube, thus avoiding the frequent breakage of the upper part of the Hospitalet bollard.
  • Iron finish painted in black oxiron, wood imitation and Ral letter color to choose from.

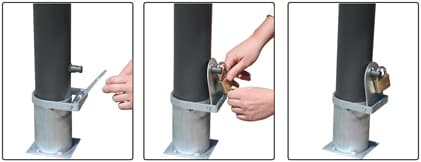

removable bollard city padlock installation

Optional:

  • Logo customization:
    - Logo creation on bollards. - Ref. CRELOG
    - Preparation of the logo on an engraving machine. - Ref. CRELOGMAQ
    - Engrave logo on 1-sided bollards. - Ref. LOGPI1C
    - Engrave logo on 2-sided bollards. - Ref. LOGPI2C
    logo personalizado
  • Reflecting tape.
  • Extra removable base. - Ref. BEXTRA95
  • Extra removable key. - Ref. LLPE
  • Other colors (according to Ral chart).

Accessories:

  • 1 ring for bollard.
    Ref. S1AP
  • 2 rings for bollard.
    Ref. S2AP
  • Galvanized chain of ø 6 mm.
    Ref. CG6100

More information:


TECHNICAL SERVICE AND SALE OF REMOVABLE IRON BOLLARDS

We have a technical department to provide service and advice on the facilities, we are manufacturers of removable iron bollards of ø100 Pcitye to embed the removable galvanized base into the ground. installers hospitalet bollard H214M, H214E, Eternal M Uh1vm halos bollards, removable barcelona bollard with c-43d-eco base.
